Knob-Style Foot Spa Bath Massager Industry knowledge

Ningbo Guanyi Electrical Technology Co.,Ltd. builds the knob-controlled foot spa range at our Cixi production base in Zhejiang, where mechanical temperature control, PTC ceramic heating and roller massage are assembled into finished, retail-ready units. As a Knob-Style Foot Spa Bath Massager manufacturer, we supply six models that share one rotary control architecture and one water-to-electricity separation layout, so a program can move between formats without changing how the appliance is operated or serviced.

The range fits volume retail tiers, hotel and hospitality amenity lines, gift and seasonal sets, and distributors who want a dependable everyday foot bath rather than an electronics-led feature set. Where touch control, bubble circulation or large displays are specified, our Computer-Controlled Foot Spa Bath Massager and Water Circulation Foot Spa Bath Massager series cover those positions within the wider Foot Spa Bath Massager family.

Why Mechanical Knob Control Suits Volume Programs

One rotary knob sets the working temperature. There is no menu tree, no display calibration and no first-use confusion, which matters when a carton has to explain itself on a retail shelf or in a hotel room.

  • Single rotary control for power and temperature — the user turns until the water feels right, without waiting for an electronic readout.
  • Fewer electronic interfaces exposed to a humid bathroom environment, which simplifies after-sales handling for the brand.
  • Identical operating logic across all six models, so a mixed container remains straightforward to demonstrate and service.
  • Mechanical parts are accessible during cleaning, keeping the tub, rollers and drain easy to maintain between uses.

Our Knob-Style Range: Six Formats

Model Format and Exterior Control and Heating Feature Highlights Typical Program Fit

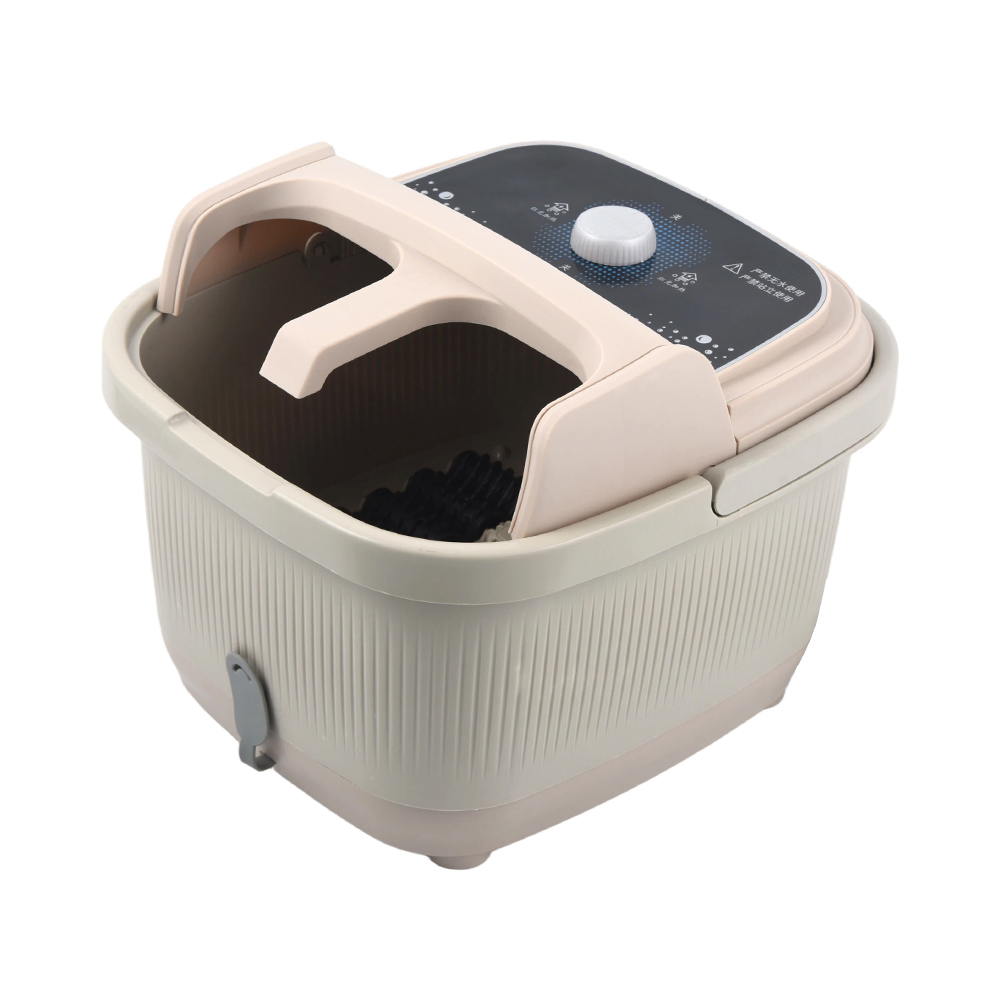

GY-626C Beige body, roller massage base Rotary knob, mechanical temperature setting Classic knob layout, rolling sole massage Volume retail, entry wellness tier

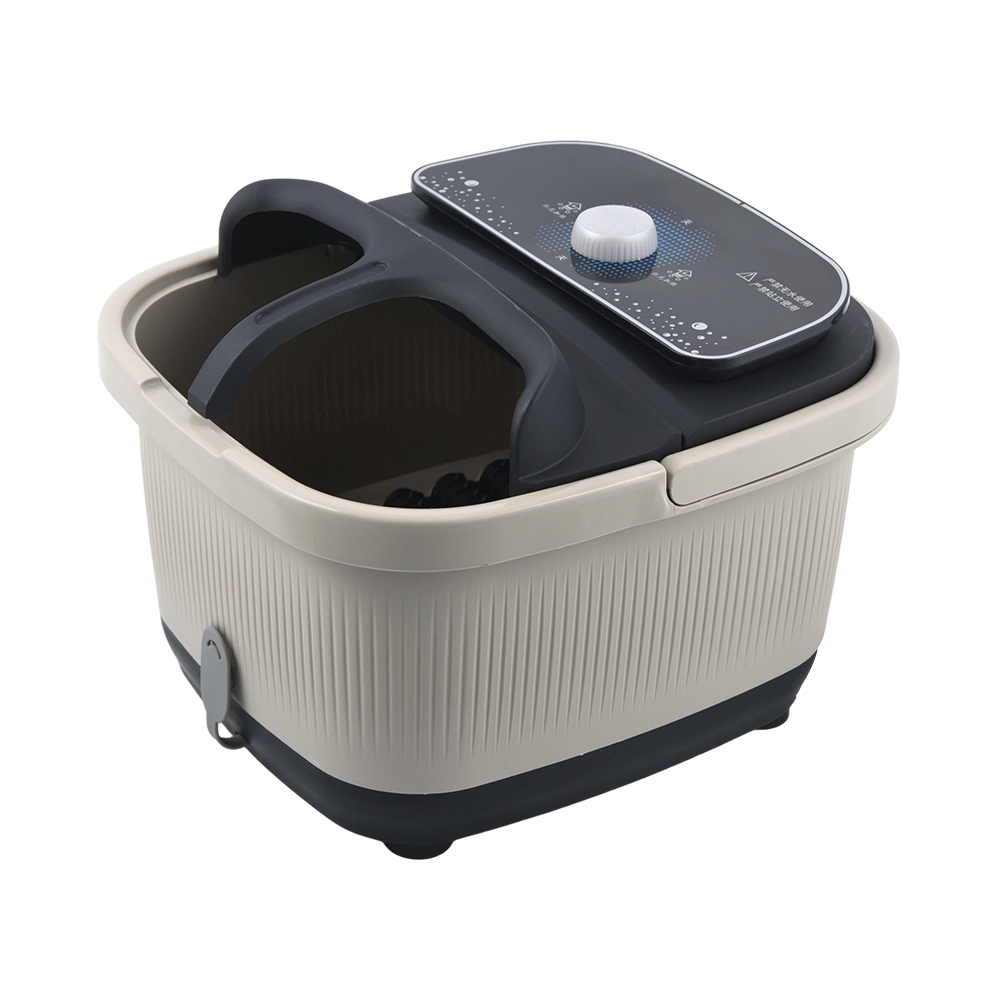

GY-626B Beige body with dark grey accents Rotary knob, mechanical temperature setting Two-tone exterior for shelf differentiation Retail lines needing colour variants

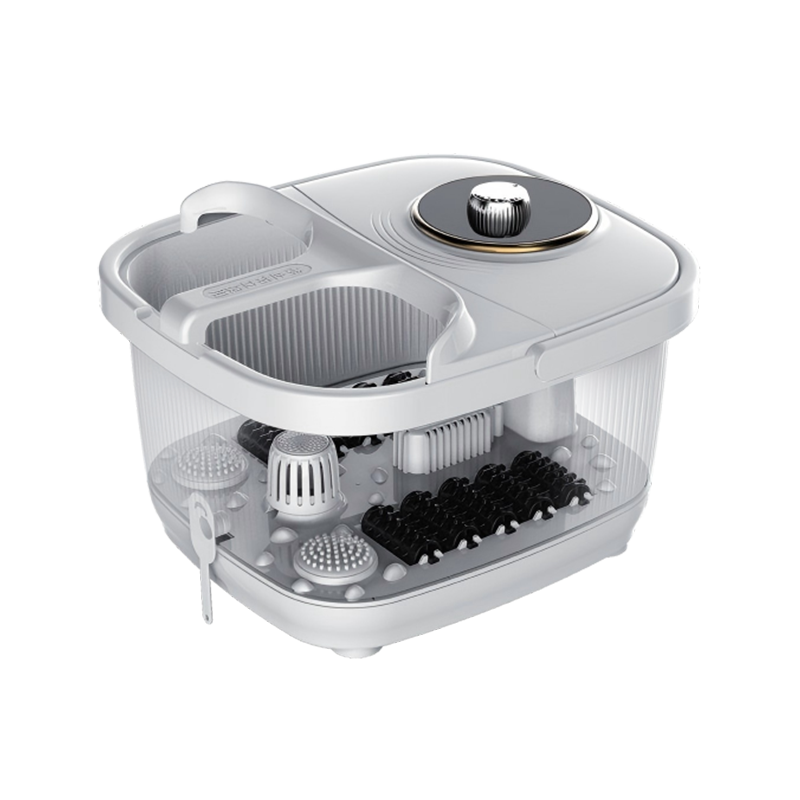

GY-S626 White lid, standard barrel Rotary knob, mechanical temperature setting Clean white lid for bright retail presentation Gift sets and home-use programs
GY-608 Standard barrel with top shower head Rotary knob, 350W constant-temperature PTC heating Boosted shower flow to instep and calf, ten rollers, red light, side handle, bottom drain Spa-style experience, mid-tier retail
GY-002C Deep barrel, calf-depth soak Rotary knob, 350W PTC heating Heats cold water to 40 °C in about 15 minutes, ten rollers, red light, handle, drain hose Cold-climate markets, deep-soak positioning
GY-002B Black lid, standard barrel Rotary knob, PTC ceramic heating Bottom red-light irradiation, ten massage rollers Dark-finish SKUs, value programs

The 626 family carries the colour and lid variants that hold a retail shelf together. The GY-608 adds a shower head for a surf-style pour over the instep and calves. The 002 family extends soak depth to the calf, which is where cold-climate markets and gift positioning usually land.

Heating Performance and Soak Geometry

PTC ceramic elements hold a stable water temperature across a long soak instead of cycling hot and cool. On the deep-barrel GY-002C, a 350W PTC system brings cold water to 40 °C in roughly 15 minutes, and the deepened wall section reduces heat loss so the soak stays warm longer.

  • Ten self-massaging rollers on GY-608, GY-002C and GY-002B cover the main sole reflex zones; the user rolls the foot back and forth while soaking.
  • Red-light lamps at the tub base of GY-608, GY-002C and GY-002B operate during the soak as a warming complement.
  • The GY-608 shower head uses a pressure-boosting design to deliver a strong but gentle flow across the instep and calf.
  • Bottom drain hoses on GY-608 and GY-002C empty the tub without lifting; side handles make a full tub manageable to move.

Materials, Tub Construction and Electrical Safety

Tubs and housings are injection moulded in-house on our 22 high-tonnage machines, which keeps wall thickness, colour match and fit consistent across repeat orders. Electrical components are segregated from the water volume, and water-to-electricity separation with leakage protection forms part of the safety testing every unit passes before packing.

  • Moulded tub surfaces are smooth and non-porous enough for routine wiping between users in hospitality settings.
  • Roller bases are exposed for cleaning; drain hoses detach for emptying and rinsing.
  • Rotary knobs sit on the upper body, clear of the water line, and are operable with wet hands.

Manufacturing Capacity Behind the Range

Our Cixi site runs an 18,000 m² production and warehousing base with 250 employees, including more than 20 technical staff, ten advanced assembly lines and a full set of testing equipment. As a Knob-Style Foot Spa Bath Massager factory in China, we plan builds against a daily capacity of 15,000 units, 300,000 units of finished-goods storage and annual output above two million units.

Long-run OEM/ODM work sits alongside that capacity: we are a long-term manufacturing partner to more than ten well-known brands, including Konka and Royalstar, and we hold CCC, CE, RoHS and BSCI certification, backed by more than 15 national patents covering massage and heating structures developed in-house.

OEM/ODM Configuration for Knob-Style Programs

Because the six models already exist as tooling, a private-label program usually starts from an existing format and reworks the parts that carry brand value rather than the whole appliance.

  • Exterior and lid finish: beige, beige with dark-grey accent, white lid or black lid selected from existing moulds.
  • Feature set: shower head, deep barrel, roller layout and red-light configuration chosen per SKU.
  • Brand and packaging: retail carton artwork, manuals, rating labels, barcodes and master-carton quantities prepared per program.
  • Electrical variants: voltage, plug and cord specification matched to the destination market.
  • Compliance files: certification documentation relevant to the target market accompanies the order.

Quality Control and Acceptance

Our quality system runs through incoming component checks, in-line assembly control and final test. At final test we verify knob travel and temperature setting, heating response, roller movement, drain-hose operation, exterior finish and carton condition before a consignment is released.

Golden samples signed off before production set the reference for colour, gloss and assembly fit, and they stay on the line for comparison during the run. Where a program requires a third-party inspection, we schedule it around the final test stage so the report reflects packed, finished goods.

Information We Use to Configure Your Solution

A useful proposal needs the working brief, not a catalogue request. These inputs let us match model, feature set, packaging and compliance in one pass.

  • Destination market, voltage and plug standard.
  • Sales channel and target price band — hypermarket, e-commerce, gift, hospitality or distributor stock.
  • Preferred format: colour or lid variant, shower head, or deep barrel.
  • Feature requirements: red light, roller layout, drain hose, side handle.
  • Packaging scope: carton artwork, manual language, master-carton quantity, labelling and barcodes.
  • Certification and marking requirements for the target market.
  • Quantity by SKU, seasonal delivery window and any repeat-order pattern.
  • Sample approval route and any custom colour matching.

Maintenance and Documentation

Serviceability was designed into the format: the drain hose removes wastewater without tipping the tub, the handle carries the unit when full, and the roller base is reachable for cleaning after every use. Each shipment carries the operating manual, rating label and care instructions in the language agreed for the market, and packaging is specified so the appliance arrives without scuffing on the lid or knob.

Frequently Asked Questions

Which knob-style foot spa models does Guanyi manufacture?

Six: GY-626C in beige with a roller base, GY-626B in beige and dark grey, GY-S626 with a white lid, GY-608 with a top shower head, GY-002C with a deep calf-depth barrel, and GY-002B with a black lid. All use the same rotary temperature control.

Can the knob-style foot spa carry our own brand and packaging?

Yes. OEM/ODM work covers exterior colour and lid finish, carton artwork, manuals, rating labels, plug and voltage variants, and master-carton configuration. Programs typically start from an existing model so tooling and validation time stay short.

How quickly does the deep-barrel model heat the water?

The GY-002C uses a 350W PTC heating system that raises cold water to 40 °C in about 15 minutes. The deepened barrel then holds warmth longer, so the soak stays comfortable without repeated topping up with hot water.

Do all models include massage rollers and red light?

The GY-608, GY-002C and GY-002B each carry ten bottom massage rollers and red-light lamps at the tub base. The 626 and S626 models are positioned around the classic knob layout and rolling sole massage, keeping the entry price point clean.

What separates the 626 family from the 002 family?

Barrel depth and exterior treatment. The 626 models are standard-depth units with colour and lid variants for shelf differentiation; the 002 models deepen the tub to calf level, with GY-002C adding a bottom drain hose for easier emptying.

What do you need to quote a knob-style foot spa program?

Model or format preference, destination market with voltage and plug, target price band, packaging and labelling requirements, certification needs, quantity by SKU and the delivery window. With those we confirm configuration, compliance files and packing specification in a single proposal.
